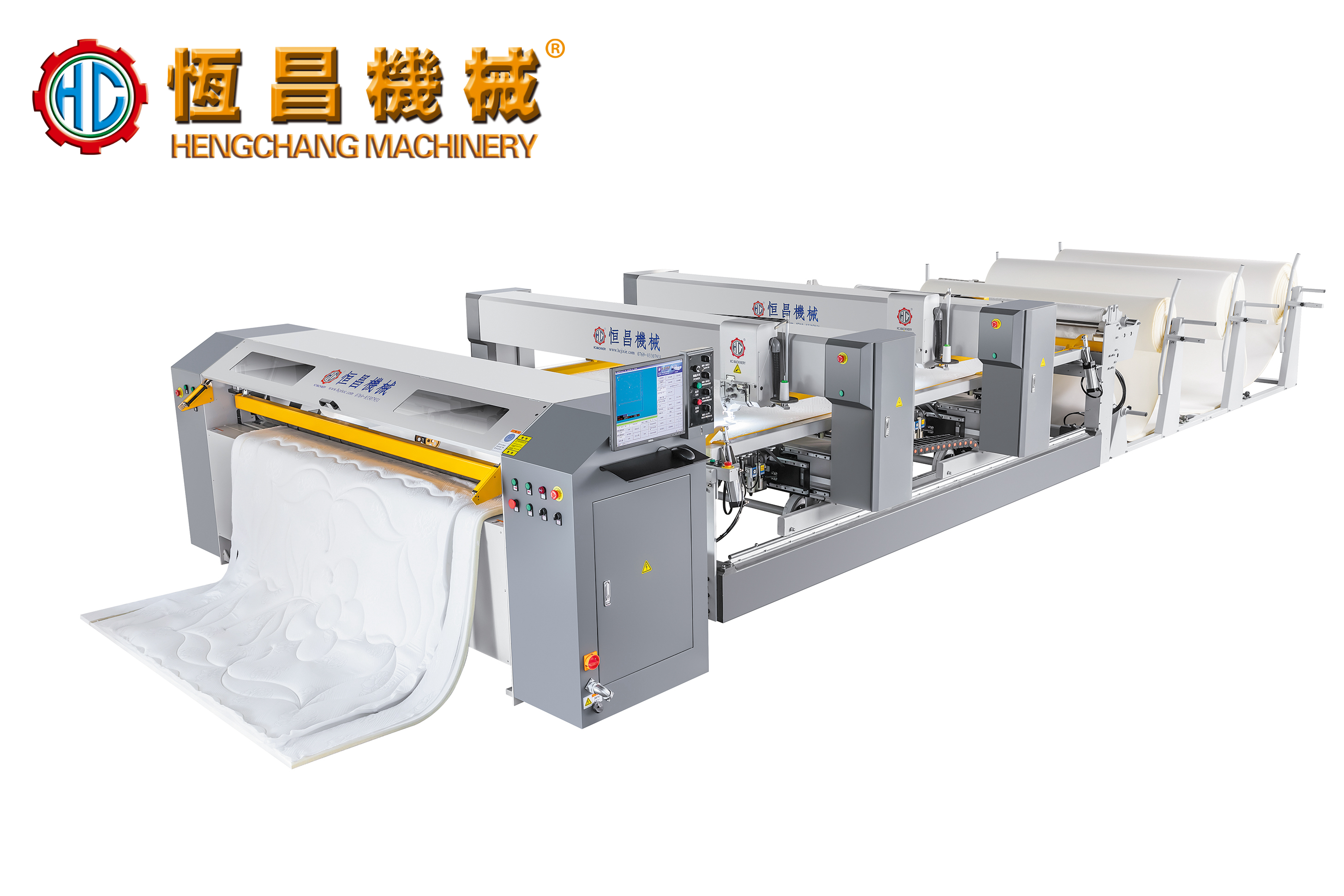

    HC-D3000 (the latest patented product) automatic high-speed double quilting machine

    Introduce:
    With on-duty production count, total output count, pattern effect display, processing trajectory display, automatic lift needle, reset fill, reinforce quilting and other functions.

    Customized

    Share:

    Product Description




    1, the introduction of new imported industrial quilting head, stable quality, reliable performance, the maximum speed up to 3000RPM;

    2, Supporting industrial large rotary hook, both automatic break detection and step-by-step quilting embroidery function, pneumatic loose thread trimming precision;
    3, back off quilted, presser foot height can be adjusted according to the thickness of the material;
    4, powerful memory computing computer carrier, can accurately quilted a variety of complex graphics, but also any point of quilting, even intermittent boot can also guarantee the continuity of the pattern quilting;
    5, support for 360-degree independent quilting quilting and rotating quilting; can store up to more than 100,000 flowers;
    6, the system can be compatible with all quilting file formats and formatting systems on the market;
    7, with on-duty production count, total output count, pattern effect display, processing trajectory display, automatic lift needle, resetting, reinforcing quilting and other functions;
    8, new full-closed-loop angle correction function, back-off parameter correction function, corner speed quilting function;
    9, seven-axis servo motor control by Japan's high-power, high precision, small noise vibration, accurate and stable operation;
    10, an upgraded version of automatic clamping, feeding pull easy operation;
    11, Improve the cutting function, cross-cutting and trimming more accurate and error-free;
    12, special left head design, independent patented technology, head length is short.




    Function Parameter





    Size (length*width*height) 10000X4500X160(mm)
    Weight 5000kg
    Quilt width 2400mm
    Rotation speed 3000RPM
    Production speed 40-160m/h
    Needle type DP x 17   21#/22#/23#
    Voltage 3-Phase,380V,50Hz
    3-Phase,220V,60Hz
    Stitch size 2-6 mm
    Power 10.5 KW
    Quilting thickness ≤80mm





    Grouped Equipment



    Imported large bobbin Imported quilting machine head         Panasonic servo control           New computer control system





    Application Range





    Quilted senior mattress fabrics, bedding, home decoration a variety of tricks.
